QS-618 Fixed Type 660mmx1800mm

Machine Size:
660mm x 1800mm
Max. Production Speed:
24,000 sheets/hr
Model : QS-618
  • QS-618 Fixed Type 660mmx1800mm
  • QS-618 Fixed Type 660mmx1800mm
  • QS-618 Fixed Type 660mmx1800mm
  • QS-618 Fixed Type 660mmx1800mm
  • QS-618 Fixed Type 660mmx1800mm
  • QS-618 Fixed Type 660mmx1800mm
  • QS-618 Fixed Type 660mmx1800mm
  • QS-618 Fixed Type 660mmx1800mm

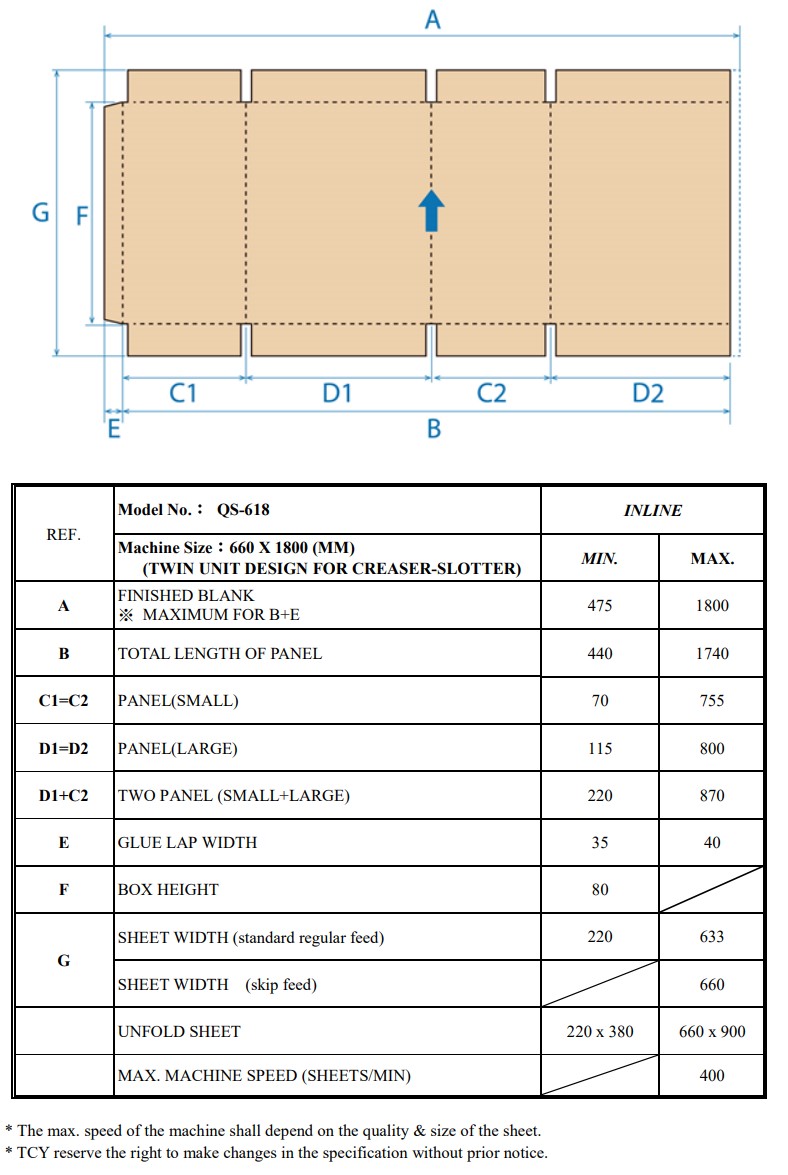

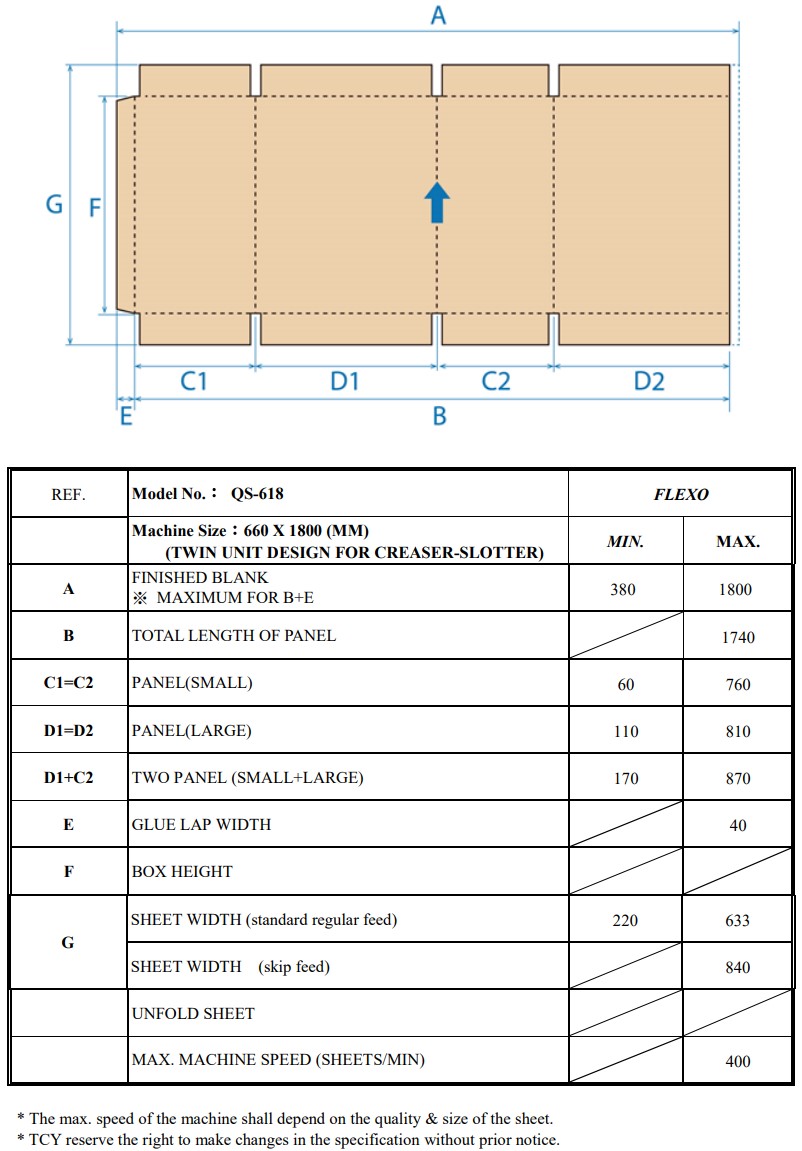

General Specifications


Full Independent Servo motor drive design, fast order set-up by TCY QS Smart-Tech CNC computer system & User Friendly HMI for easy operation.


By non-stop order change design to prepare next order printing die and ink while machine still running current order to maximize your productivity with consistent high-quality boxes at fast speed.


QS Servo control system controls each main shaft positioning absolute accurate position and no need to calibrate.


Powerful QS Smart-Tech system provides many convenient functions such like maintenance reminder system, error troubleshooting, efficiency status, driver monitor, dynamic information, quick port check…etc.


  • Full servo motor drive for lead edge feeder.
  • Automatic feeding stroke of “Sun Automation” gear box.
  • Maximum speed up to 400 sheets per minute.
  • Automatically adjust air vent of feeding chamber.
  • Full integrated control by 12 inches HMI for Flexo machine.


PRINTING SECTION (Top printing)
  • Full servo motor drive for each printer unit.
  • Upper unit of printer may lift up for printing die change during operation and lower vacuum transfer unit still working.

  • Motorized reel rod lock and release for mounting stereo by push button without hand tool.

  • Vacuum transfer by thread wheel for each printer unit.
  • Printing registration of each printer can be individual adjustment.



  • Full servo motor drive for double slotting shafts & double creasing shafts.

  • Enlarge crusher and creaser for getting effective scoring line.

  • Stainless strip of defecator for slotting waste paper extrusion.

  • Upper trimming knife with a waste guider for trimming paper.



  • Independent servo motor drive for die drum and anvil drum.

  • Anvil trimming device with servo drive synchronized control.

  • Motorized movement Aluminum circle on die drum.

  • Anvil drum oscillation via hydraulic cylinder.

  • Waste conveyor underneath die cutter units.


FOLDER GLUER (Bottom Folding)

  • Upper folding belt equipped suction chamber with pressure wheel.

  • Speed of lower folding belt can be setting by servo motor via HMI

  • Speed of side guiding wheel can be setting by servo motor via HMI.



  • Top loading finished box with bottom extruder for bundle boxes.

  • Receiving sheet folk forward and backward by servo motor drive.

  • Receiving sheet folk up and down by pneumatic cylinder.

  • Boxes loading platform up and down by servo motor drive.

  • Pneumatic pusher extrudes bundle boxes to delivery conveyor.

  • Full integrated safety control system via detector and PLC for auto stop.
